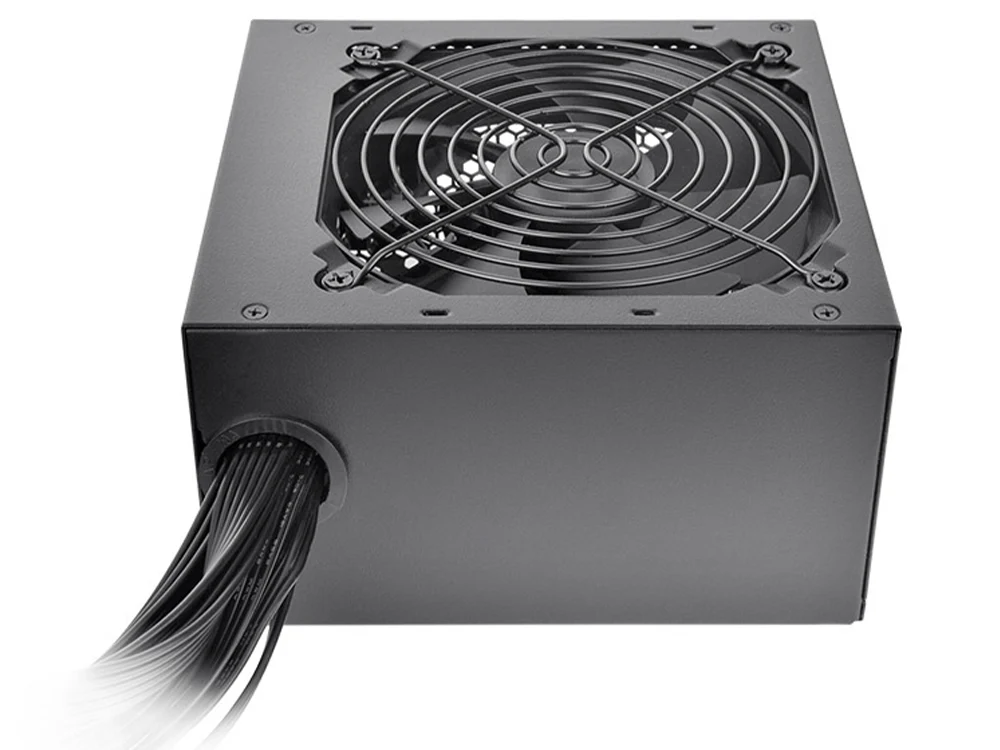

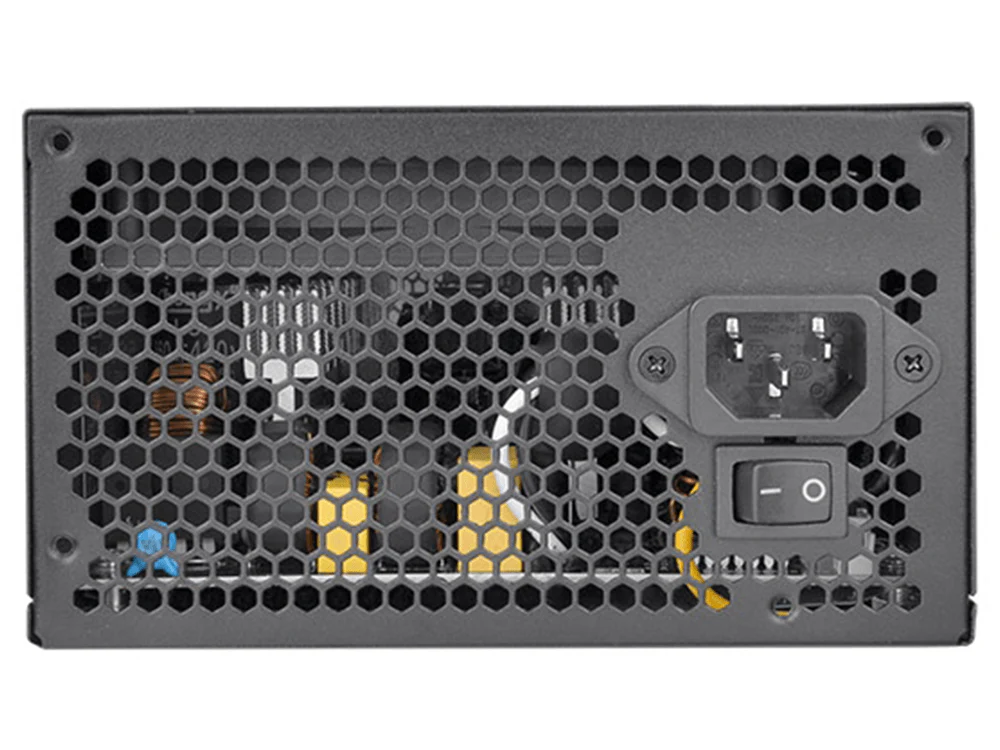

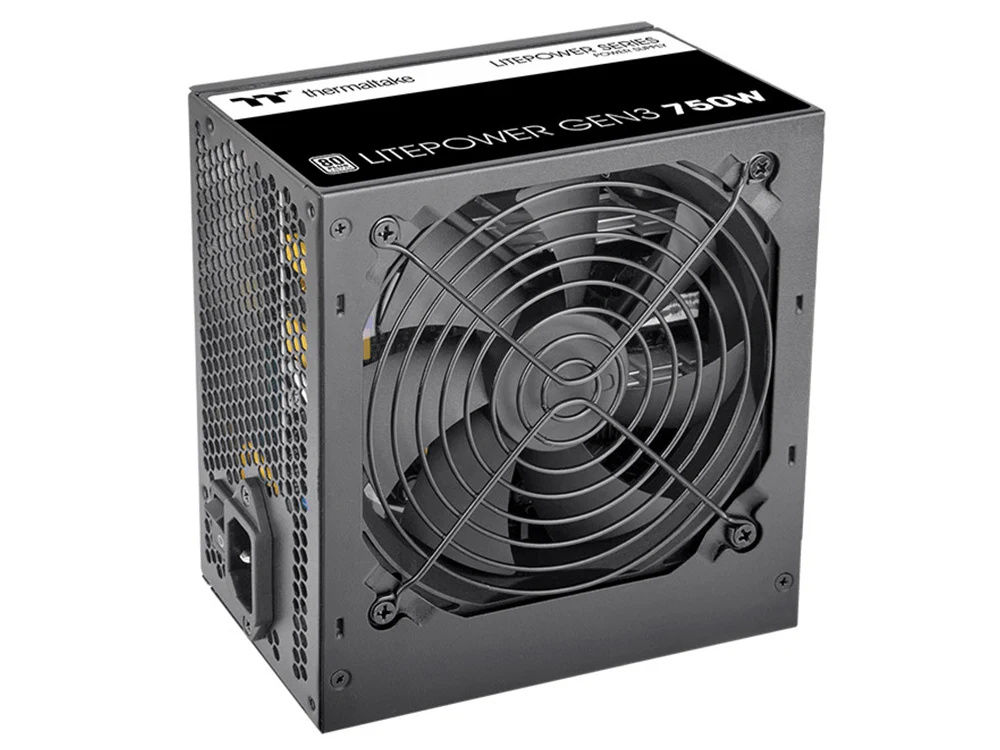

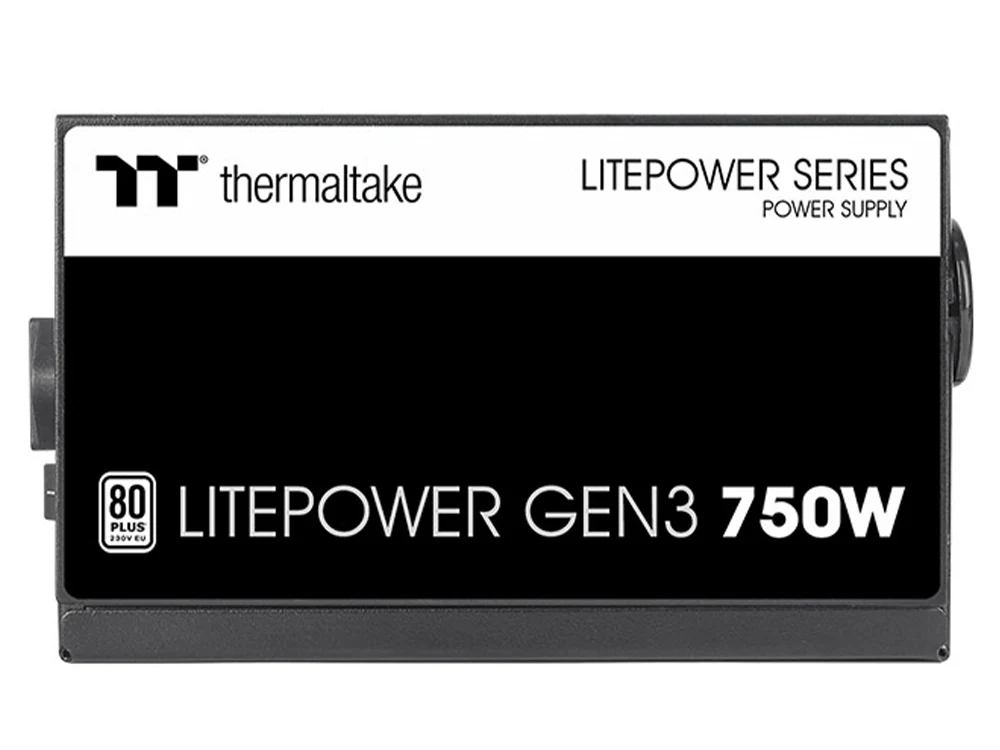

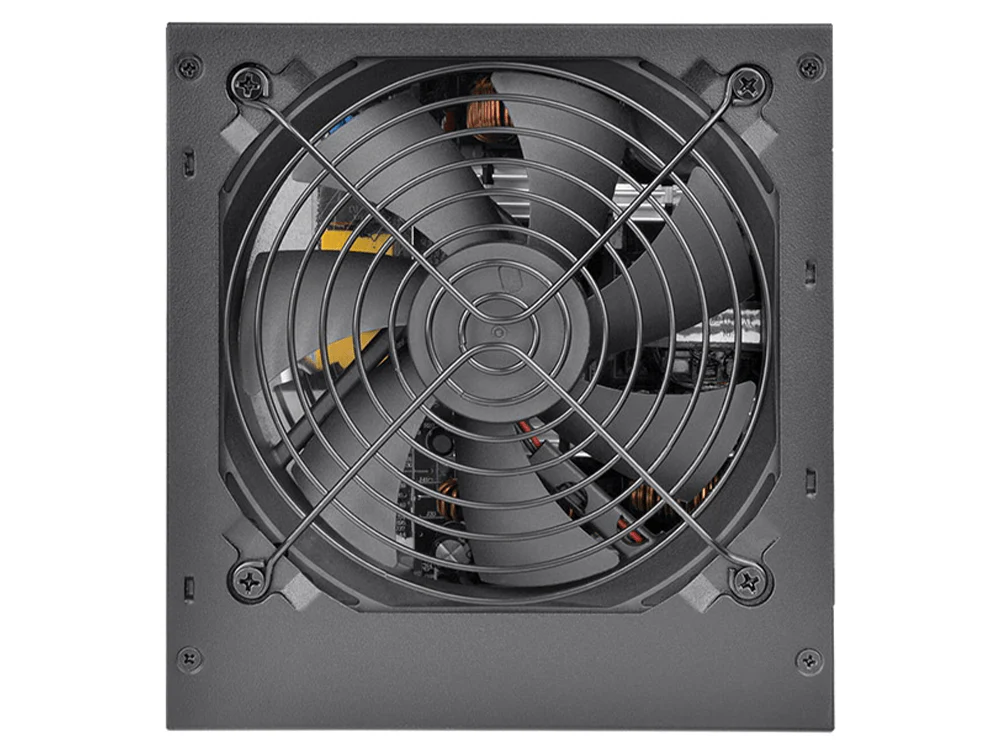

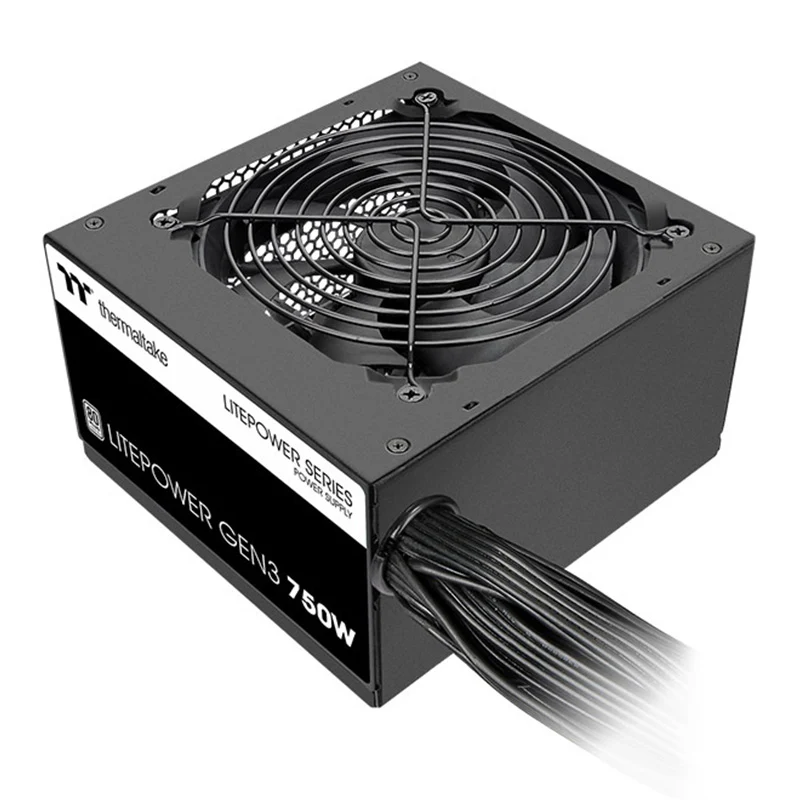

Thermaltake Litepower Gen3 750W 80+ PSU
SPECIFICATIONS:
|
Watts |
750W |
|
Model |
TRS-750AH4NXW |
|
Dimension ( W / H / D ) |
150mm(W)x86mm(H)x140mm(D) |
|
PFC (Power Factor Correction) |
Active PFC |
|
Power good signal |
100-150 msec |
|
Hold up time |
> 17msec at 80% load |
|
Input current |
8A Max. |
|
Input frequency range |
50Hz |
|
Input voltage |
200-240Vac |
|
Operating temperature |
5°C to + 40°C |
|
Operating humidity |
20% to 85%,non-condensing |
|
Storage temperature |
-40°C to + 55°C |
|
Storage humidity |
10% to 95%, non-condensing |
|
Cooling system |
12cm Hydraulic Bearing Fan |
|
Efficiency |
80 PLUS® 230V EU Certified |
|
MTBF |
100,000 hrs minimum |
|
Safety approval |
FCC/ICES/CB/cTUVus |
|
PCI-E 6+2PIN |
2 |
|
Protection |
OCP/OVP/OPP/OTP/UVP/SCP |
