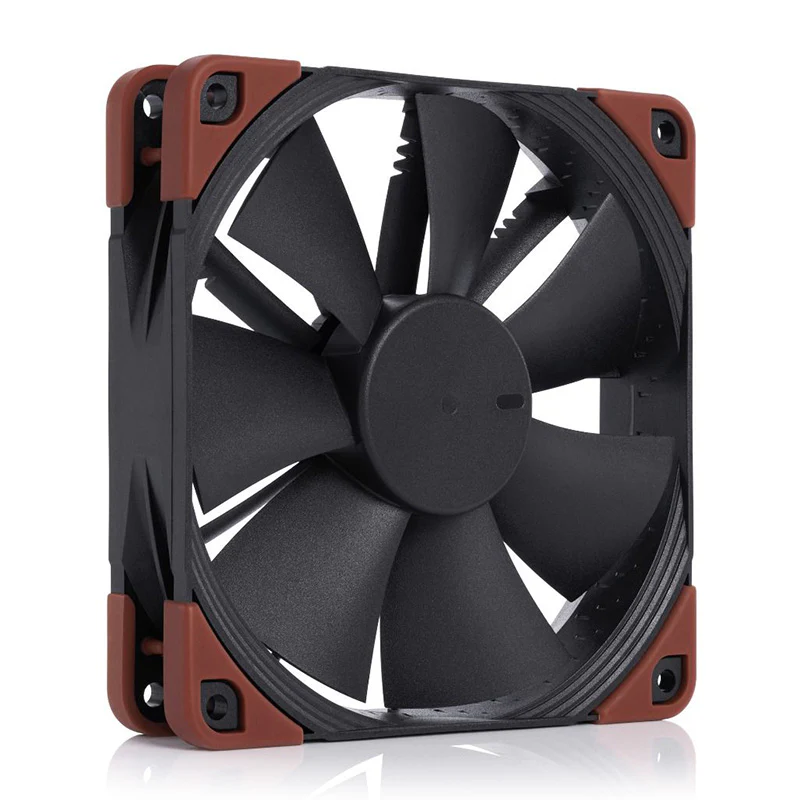

Noctua NF-F12-iPPC-2000-PWM 120mm IndustrialPPC IP52 2000RPM PWM Fan
SPECIFICATIONS:
|
Size |
120x120x25 mm |
|
Mounting hole spacing |
105x105 mm |
|
Connector & pin-configuration |
4-pin PWM |
|
Cable length |
40cm |
|
Bearing |
SSO2 |
|
Blade geometry |
Heptaperf™ |
|
Frame technology |
FocusedFlow™ |
|
Material |
Fibre-glass reinforced polyamide |
|
Ingress protection |
IP52 |
|
Motor type |
Three-phase |
|
Rotational speed (+/- 10%) |
2000 RPM |
|
Min. rotational speed @ 20% PWM (+/-20%) |
450 RPM |
|
Airflow |
121,8 m³/h |
|
Acoustical noise |
29,7 dB(A) |
|
Static pressure |
3,94 mm H₂O |
|
Input power (typical) |
1,06 W |
|
Input power (max.) |
1,2 W |
|
Input current (typical) |
0,09 A |
|
Max. input current |
0,1 A |
|
Operating voltage |
12 V |
|
MTTF |
> 150.000 h |
|
Scope of delivery |
Fan 4 Fan Screws |
Original: $47.77
-70%$47.77
$14.33
Description
SPECIFICATIONS:
|
Size |
120x120x25 mm |
|
Mounting hole spacing |
105x105 mm |
|
Connector & pin-configuration |
4-pin PWM |
|
Cable length |
40cm |
|
Bearing |
SSO2 |
|
Blade geometry |
Heptaperf™ |
|
Frame technology |
FocusedFlow™ |
|
Material |
Fibre-glass reinforced polyamide |
|
Ingress protection |
IP52 |
|
Motor type |
Three-phase |
|
Rotational speed (+/- 10%) |
2000 RPM |
|
Min. rotational speed @ 20% PWM (+/-20%) |
450 RPM |
|
Airflow |
121,8 m³/h |
|
Acoustical noise |
29,7 dB(A) |
|
Static pressure |
3,94 mm H₂O |
|
Input power (typical) |
1,06 W |
|
Input power (max.) |
1,2 W |
|
Input current (typical) |
0,09 A |
|
Max. input current |
0,1 A |
|
Operating voltage |
12 V |
|
MTTF |
> 150.000 h |
|
Scope of delivery |
Fan 4 Fan Screws |
