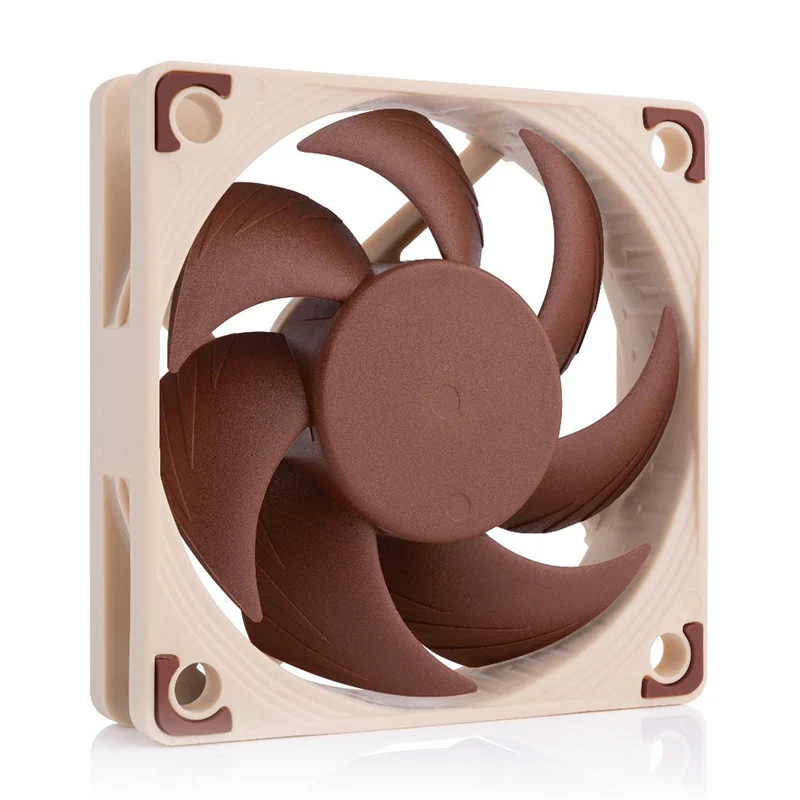

Noctua 60mm 3500 RPM 4-Pin PWM Fan (NF-A6X15-5V-PWM)
SPECIFICATIONS:
|
Size |
60x60x15 mm |
|
Mounting hole spacing |
50x50 mm |
|
Connector & pin-configuration |
4-pin PWM |
|
Cable length |
20cm + 30cm NA-EC1 extension cable |
|
Bearing |
SSO2 |
|
Blade geometry |
A-Series with Flow Acceleration Channels |
|
Frame technology |
AAO (Advanced Acoustic Optimisation) |
|
Material |
Fibre-glass reinforced PBT |
|
Rotational speed (+/- 10%) |
3500 RPM |
|
Airflow |
23.4 m³/h |
|
Acoustical noise |
19.8 dB(A) |
|
Static pressure |
2.43 mm H₂O |
|
Input power (max.) |
0.85 W |
|
Max. input current |
0.17 A |
|
Operating voltage |
5 V |
|
MTTF |
> 150.000 h |
|
Scope of delivery |
4x NA-AV2 anti-vibration mounts NA-EC1 30cm extension cable USB power adaptor cable OmniJoin™ adaptor set Fan screws |
|
Notes and warnings |
Being a 5V fan, the NF-A6x15 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers. |
Original: $29.67
-70%$29.67
$8.90
Description
SPECIFICATIONS:
|
Size |
60x60x15 mm |
|
Mounting hole spacing |
50x50 mm |
|
Connector & pin-configuration |
4-pin PWM |
|
Cable length |
20cm + 30cm NA-EC1 extension cable |
|
Bearing |
SSO2 |
|
Blade geometry |
A-Series with Flow Acceleration Channels |
|
Frame technology |
AAO (Advanced Acoustic Optimisation) |
|
Material |
Fibre-glass reinforced PBT |
|
Rotational speed (+/- 10%) |
3500 RPM |
|
Airflow |
23.4 m³/h |
|
Acoustical noise |
19.8 dB(A) |
|
Static pressure |
2.43 mm H₂O |
|
Input power (max.) |
0.85 W |
|
Max. input current |
0.17 A |
|
Operating voltage |
5 V |
|
MTTF |
> 150.000 h |
|
Scope of delivery |
4x NA-AV2 anti-vibration mounts NA-EC1 30cm extension cable USB power adaptor cable OmniJoin™ adaptor set Fan screws |
|
Notes and warnings |
Being a 5V fan, the NF-A6x15 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers. |
