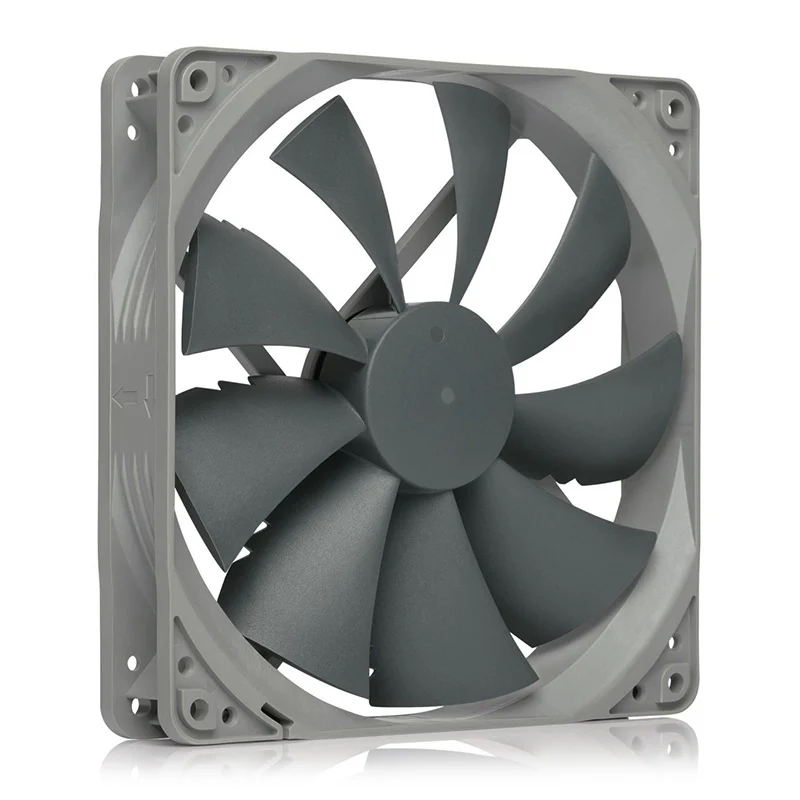

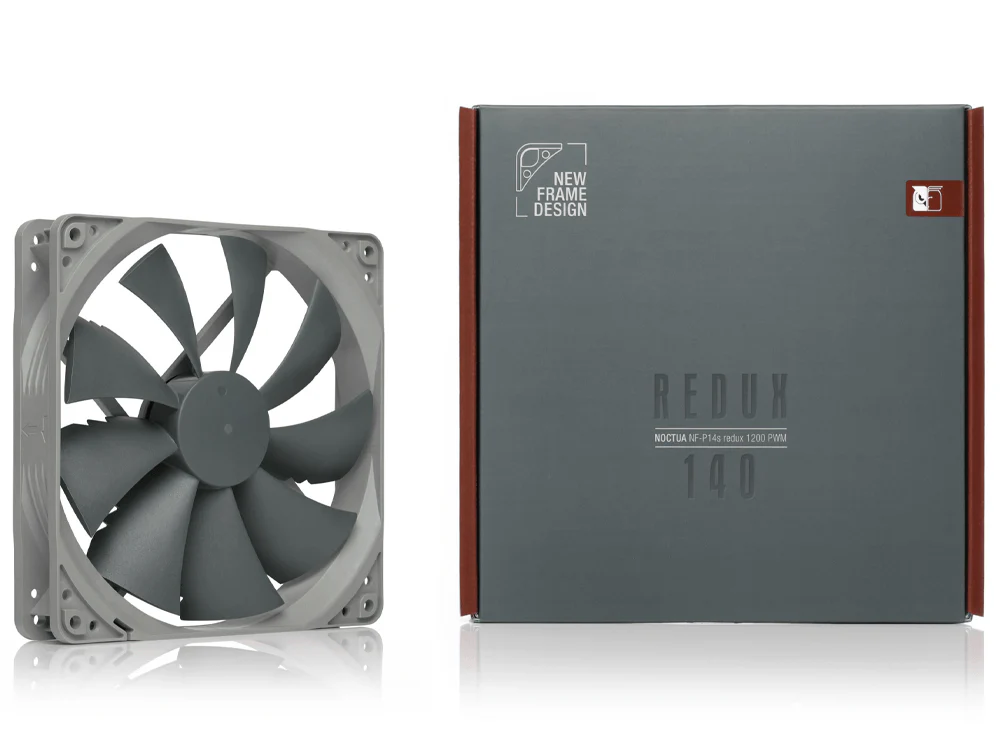

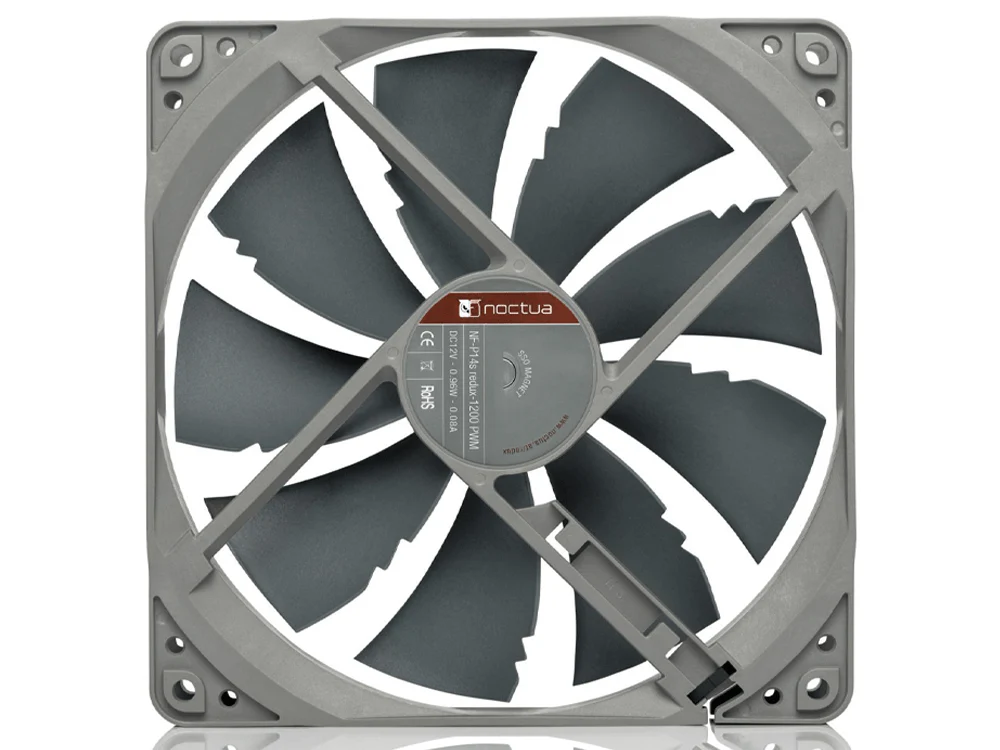

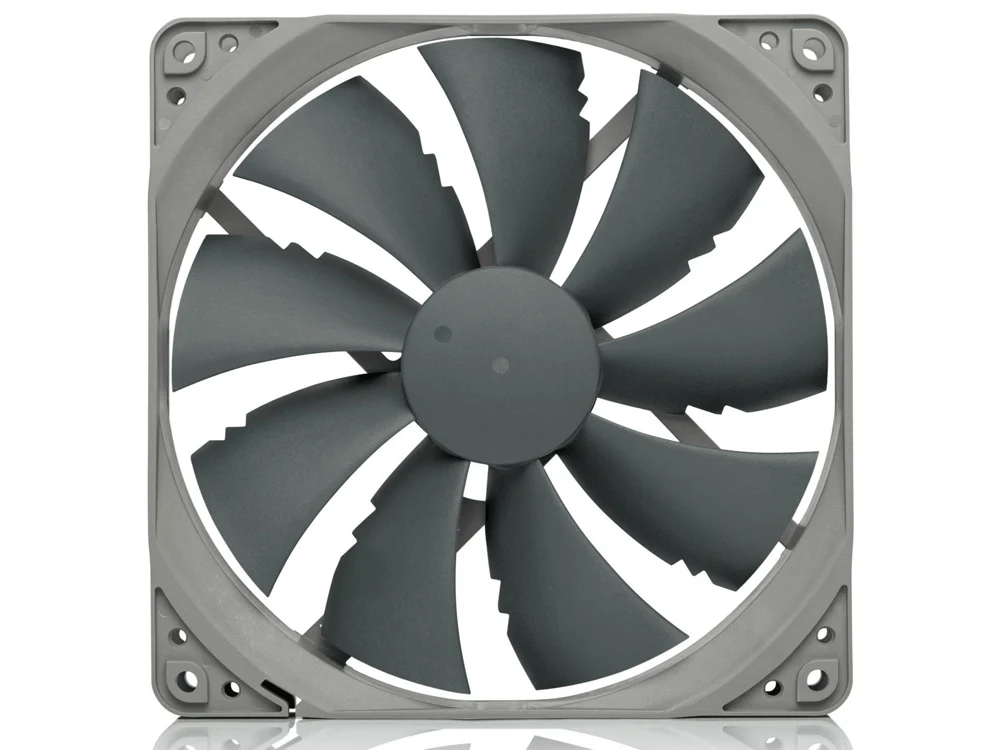

Noctua 140mm Redux Edition Square Frame PWM Fan Max 1200RPM (NF-P14S-REDUX-1200-PWM)
SPECIFICATIONS:
|
Size |
140x140x25 mm |
|
Mounting hole spacing |
124,5x124,5 mm |
|
Connector & pin-configuration |
4-pin PWM |
|
Cable length |
40cm |
|
Bearing |
SSO-Bearing |
|
Rotational speed (+/- 10%) |
1200 RPM |
|
Min. rotational speed @ 20% PWM (+/-20%) |
350 RPM |
|
Airflow |
110,3 m³/h |
|
Acoustical noise |
19,6 dB(A) |
|
Static pressure |
1,29 mm H₂O |
|
Input power (typical) |
1,056 W |
|
Input power (max.) |
0,96 W |
|
Input current (typical) |
0,088 A |
|
Max. input current |
0,08 A |
|
Operating voltage |
12 V |
|
MTTF |
> 150.000 h |
|
Scope of delivery |
Fan 4 Fan Screws |
Original: $29.67
-70%$29.67
$8.90
Description
SPECIFICATIONS:
|
Size |
140x140x25 mm |
|
Mounting hole spacing |
124,5x124,5 mm |
|
Connector & pin-configuration |
4-pin PWM |
|
Cable length |
40cm |
|
Bearing |
SSO-Bearing |
|
Rotational speed (+/- 10%) |
1200 RPM |
|
Min. rotational speed @ 20% PWM (+/-20%) |
350 RPM |
|
Airflow |
110,3 m³/h |
|
Acoustical noise |
19,6 dB(A) |
|
Static pressure |
1,29 mm H₂O |
|
Input power (typical) |
1,056 W |
|
Input power (max.) |
0,96 W |
|
Input current (typical) |
0,088 A |
|
Max. input current |
0,08 A |
|
Operating voltage |
12 V |
|
MTTF |
> 150.000 h |
|
Scope of delivery |
Fan 4 Fan Screws |
