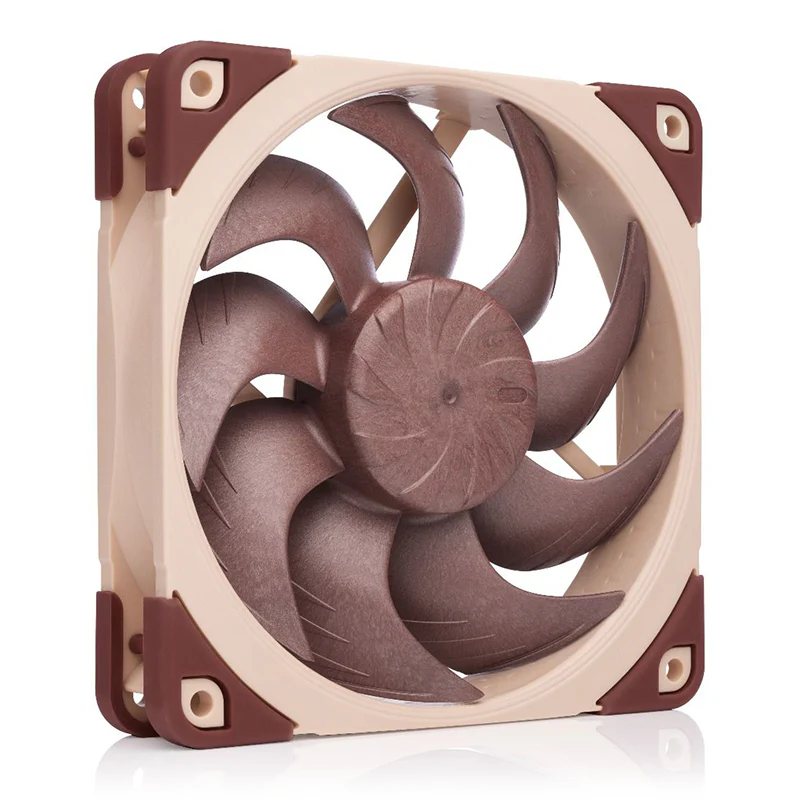

Noctua 120mm NF-A12X25 G2 PWM Fan

Size

120x120x25 mm

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

Progressive-Bend Impeller

Frame technology

AAO (Advanced Acoustic Optimisation)

Material

Sterrox ® LCP

Rotational speed (+/- 10%)

1800 RPM

Rotational speed with L.N.A. (+/- 10%)

1500 RPM

Airflow

107.3 m ³/h

Airflow with L.N.A.

87.2 m ³/h

Acoustical noise

22.5 dB(A)

Acoustical noise with L.N.A.

18.1 dB(A)

Static pressure

3.14 mm H ‚‚O

Static pressure with L.N.A.

1.71 mm H ‚‚O

Input power (max.)

1.8 W

Max. input current

0.15 A

Operating voltage

12 V

MTTF

> 150,000 h

Scope of delivery

NA-RC7 Low-Noise Adaptor (L.N.A.)

NA-YC1 4-pin PWM splitter cable

NA-EC1 30cm extension cable

4x NA-AV2 anti-vibration mounts

NA-AVG1 anti-vibration gasket for water cooling radiators

Fan screws
