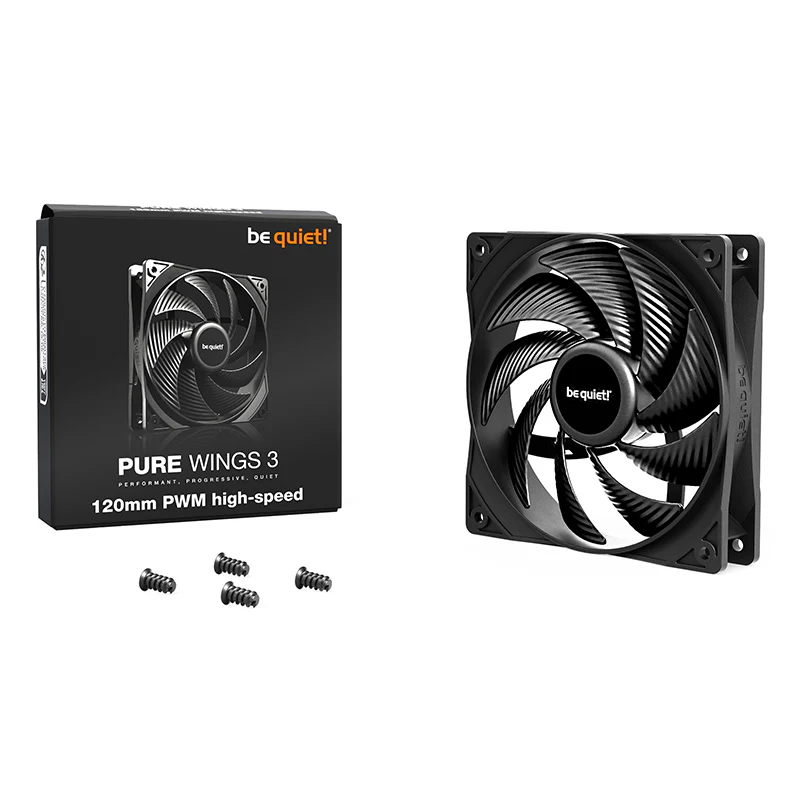

Be quiet! Pure Wings 3 120mm PWM High Speed Fan - Black (BL106)

Model

Pure Wings 3 120mm PWM high-speed

Dimensions (mm)

120

Color option

Black

Fan speed @ 100% PWM / 12V (rpm)

2100

Noise level @ 100% PWM / 12V (dB(A))

30.9

Air Flow @ 100% PWM / 12V (CFM / m3/h)

59.6 / 101.2

Air Pressure @ 100% PWM / 12V (mm H2O)

2.41

MECHANICAL SPECIFICATIONS

Dimensions (L x W x H), (mm)

120 x 120 x 25

Weight incl. fixed cables (g)

149

Bearing technology

Rifle

Motor technology

4-pole fan motor

Screw fixing

œ“

CABLES / CONNECTORS

Connector

4-pin PWM

Cable length (mm)

460

PERFORMANCE / NOISE

Air Flow @ 100% PWM / 12V (CFM / m3/h)

59.6 / 101.2

Air Pressure @ 100% PWM / 12V (mm H2O)

2.41

Noise level @ 100% PWM / 12V (dB(A))

30.9

Lifespan (h / 25 °C)

80,000

ELECTRICAL SPECIFICATIONS

Rated Voltage DC (V)

12

Operating Voltage DC (V)

5 - 13.2

Current consumption (A)

0.13

Safety current (A)

0.30

Input power (W)

3.6

ACCESSORIES

Screws

4

SAFETY CERTIFICATION

Approvals

CE / RoHS / RU / UKCA / WEEE

ENVIRONMENTAL DIRECTIVES

RoHS

œ“

WEEE

œ“

Triman

œ“
