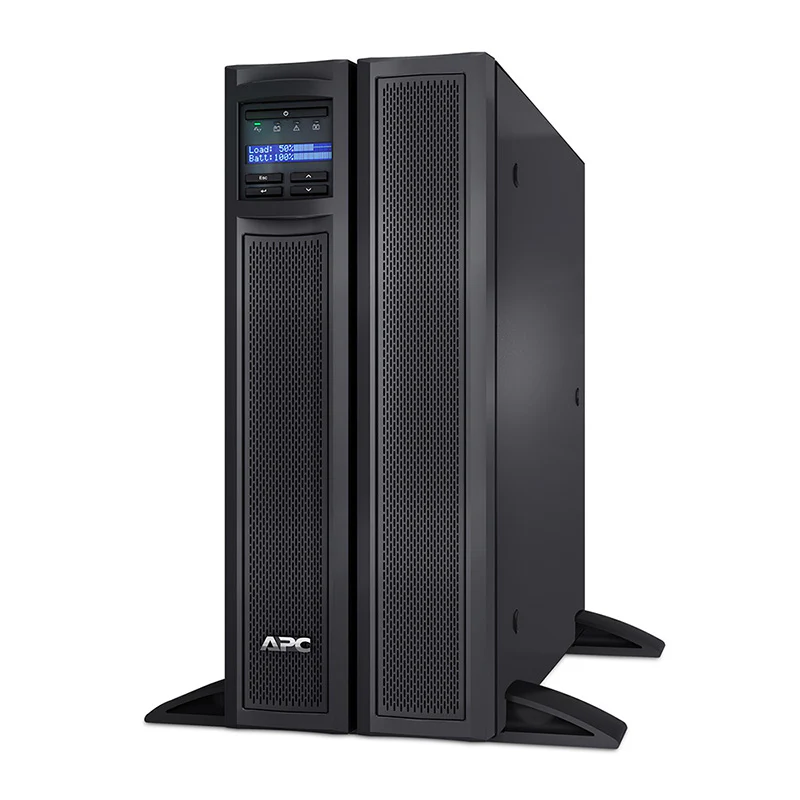

APC by Schneider Smart-UPS X 3000VA Tower LCD 200-240V with Network Card
| Main | |
| Main Input Voltage | 208 V, 230 V |
| Other Input Voltage | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 208 V, 220 V, 240 V |
| Rated Power | 2700 W (3000 VA) |
| Input Connection Type | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
| Power Socket Outlets | 8 IEC C13, 2 IEC Jumpers, 2 IEC C19 |
| Rack Units | 4U |
| Cable Length | 2.44 m |
| Battery Type | Lead‑acid |
| Extended Runtime | Yes (external battery packs available) |
| Battery Recharge Time | 3 Hours |
| Battery Life | 3‑5 years |
| Replacement Battery | APCRBC143 |
| Battery Options | SMX120BP 1 2214 VAh, SMX120BP 2 3690 VAh, SMX120BP 3 5166 VAh, SMX120BP 4 6642 VAh, SMX120BP 6 9594 VAh, SMX120BP 8 12546 VAh, SMX120BP 10 15498 VAh |
| Physical | |
| Colour | Black |
| Height | 43.2 cm |
| Width | 17.8 cm |
| Depth | 48.3 cm |
| Net Weight | 38.64 kg |
| Input | |
| Voltage Limits | 140 – 280 V |
| Network Frequency | 50/60 Hz ± 3 Hz (auto‑sensing) |
| Output | |
| Waveform | Sine wave |
| UPS Type | Line‑interactive |
| Harmonic Distortion | < 5 % |
| Transfer Time | 2‑4 ms (typical 6 ms, max 10 ms) |
| Output Frequency | 50/60 Hz ± 3 Hz (sync to mains) |
| Surge Protection & Filtering | |
| Surge Energy Rating | 645 Joules |
| Noise Suppression | Full‑time multi‑pole filtering, 0.3 % IEEE let‑through, zero clamping response time, UL 1449 compliant |
| Communications & Management | |
| Preinstalled Device | Network management card 2 with environmental monitoring |
| Control Panel | Multifunction LCD console, LED status indicators (online, on‑battery, replace‑battery, overload) |
| Emergency Power Off | Yes |
| Conformance | |
| Certifications | C‑Tick, CE, CSA, EAC, GOST, IRAM, VDE |
| Environmental | |
| Acoustic Level | 55 dBA |
| Operating Temperature | 0 – 40 °C (operation), –15 – 45 °C (storage) |
| Relative Humidity | 0 – 95 % |
| Warranty | |
| Standard Warranty | 3 years repair/replace (excluding battery), 2 years for battery |
$1,058.44
Original: $3,528.15
-70%APC by Schneider Smart-UPS X 3000VA Tower LCD 200-240V with Network Card—
$3,528.15
$1,058.44
Description
| Main | |
| Main Input Voltage | 208 V, 230 V |
| Other Input Voltage | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 208 V, 220 V, 240 V |
| Rated Power | 2700 W (3000 VA) |
| Input Connection Type | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
| Power Socket Outlets | 8 IEC C13, 2 IEC Jumpers, 2 IEC C19 |
| Rack Units | 4U |
| Cable Length | 2.44 m |
| Battery Type | Lead‑acid |
| Extended Runtime | Yes (external battery packs available) |
| Battery Recharge Time | 3 Hours |
| Battery Life | 3‑5 years |
| Replacement Battery | APCRBC143 |
| Battery Options | SMX120BP 1 2214 VAh, SMX120BP 2 3690 VAh, SMX120BP 3 5166 VAh, SMX120BP 4 6642 VAh, SMX120BP 6 9594 VAh, SMX120BP 8 12546 VAh, SMX120BP 10 15498 VAh |
| Physical | |
| Colour | Black |
| Height | 43.2 cm |
| Width | 17.8 cm |
| Depth | 48.3 cm |
| Net Weight | 38.64 kg |
| Input | |
| Voltage Limits | 140 – 280 V |
| Network Frequency | 50/60 Hz ± 3 Hz (auto‑sensing) |
| Output | |
| Waveform | Sine wave |
| UPS Type | Line‑interactive |
| Harmonic Distortion | < 5 % |
| Transfer Time | 2‑4 ms (typical 6 ms, max 10 ms) |
| Output Frequency | 50/60 Hz ± 3 Hz (sync to mains) |
| Surge Protection & Filtering | |
| Surge Energy Rating | 645 Joules |
| Noise Suppression | Full‑time multi‑pole filtering, 0.3 % IEEE let‑through, zero clamping response time, UL 1449 compliant |
| Communications & Management | |
| Preinstalled Device | Network management card 2 with environmental monitoring |
| Control Panel | Multifunction LCD console, LED status indicators (online, on‑battery, replace‑battery, overload) |
| Emergency Power Off | Yes |
| Conformance | |
| Certifications | C‑Tick, CE, CSA, EAC, GOST, IRAM, VDE |
| Environmental | |
| Acoustic Level | 55 dBA |
| Operating Temperature | 0 – 40 °C (operation), –15 – 45 °C (storage) |
| Relative Humidity | 0 – 95 % |
| Warranty | |
| Standard Warranty | 3 years repair/replace (excluding battery), 2 years for battery |
