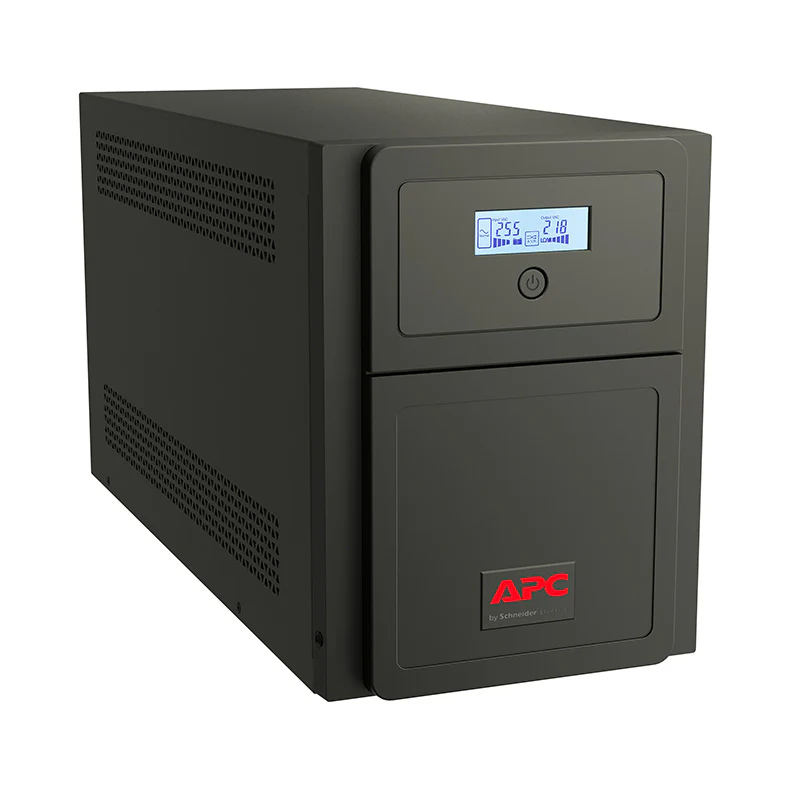

APC by Schneider Easy UPS SMV 1000VA / 700W 230V LCD Tower UPS - SMV1000CAI
| Output | |
|---|---|
| Max Configurable Power (Watts) | 700 Watts / 1.0kVA |
| Output Frequency (sync to mains) | 50/60 Hz +/- 1 Hz Unsynchronised |
| Load Crest Factor | 3 : 1 |
| Topology | Line interactive |
| Waveform type | Sine wave |
| Transfer Time | 2-6 ms typical : 12 ms maximum |
| Input | |
| Input frequency | 45 - 65 Hz +/- 1 Hz Auto-sensing |
| Input voltage range for main operations | 165 - 290V |
| Number of Power Cords | 1 |
| Input Power Factor at Full Load | 220 V, 240 V |
| Batteries & Runtime | |
| Battery type | Lead‑acid battery |
| Typical recharge time | 4 hours |
| Expected Battery Life (years) | 3 - 5 |
| Battery Charge Power (Watts) | 37 Watts |
| Battery Volt‑Amp‑Hour Capacity | 168 |
| Communications & Management | |
| Interface Port(s) | Intelligent Smart Slot, USB |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Available SmartSlot™ Interface Quantity | 1 |
| Surge Protection and Filtering | |
| Surge energy rating | 190 Joules |
| Physical | |
| Maximum Height | 220 mm |
| Maximum Width | 160 mm |
| Maximum Depth | 410 mm |
| Net Weight | 13.6 kg |
| Shipping weight | 16.6 kg |
| Shipping Height | 339 mm |
| Shipping Width | 272 mm |
| Shipping Depth | 508 mm |
| Colour | Black |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 (Non‑condensing) % |
| Operating Elevation | 0 - 3000 metres |
| Storage Temperature | -10 - 40 °C |
| Storage Relative Humidity | 0 - 95 (Non‑condensing) % |
| Storage Elevation | 0 - 15000 metres |
| Audible noise at 1 metre from surface of unit | 45.0 dBA |
| Protection Class | IP20 |
| Conformance | |
| Approvals | CE, EN/IEC 62040-1, EN/IEC 62040-2 |
| Standard warranty | 2 years repair or replace |
$374.16
APC by Schneider Easy UPS SMV 1000VA / 700W 230V LCD Tower UPS - SMV1000CAI—
$374.16
Description
| Output | |
|---|---|
| Max Configurable Power (Watts) | 700 Watts / 1.0kVA |
| Output Frequency (sync to mains) | 50/60 Hz +/- 1 Hz Unsynchronised |
| Load Crest Factor | 3 : 1 |
| Topology | Line interactive |
| Waveform type | Sine wave |
| Transfer Time | 2-6 ms typical : 12 ms maximum |
| Input | |
| Input frequency | 45 - 65 Hz +/- 1 Hz Auto-sensing |
| Input voltage range for main operations | 165 - 290V |
| Number of Power Cords | 1 |
| Input Power Factor at Full Load | 220 V, 240 V |
| Batteries & Runtime | |
| Battery type | Lead‑acid battery |
| Typical recharge time | 4 hours |
| Expected Battery Life (years) | 3 - 5 |
| Battery Charge Power (Watts) | 37 Watts |
| Battery Volt‑Amp‑Hour Capacity | 168 |
| Communications & Management | |
| Interface Port(s) | Intelligent Smart Slot, USB |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Available SmartSlot™ Interface Quantity | 1 |
| Surge Protection and Filtering | |
| Surge energy rating | 190 Joules |
| Physical | |
| Maximum Height | 220 mm |
| Maximum Width | 160 mm |
| Maximum Depth | 410 mm |
| Net Weight | 13.6 kg |
| Shipping weight | 16.6 kg |
| Shipping Height | 339 mm |
| Shipping Width | 272 mm |
| Shipping Depth | 508 mm |
| Colour | Black |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 (Non‑condensing) % |
| Operating Elevation | 0 - 3000 metres |
| Storage Temperature | -10 - 40 °C |
| Storage Relative Humidity | 0 - 95 (Non‑condensing) % |
| Storage Elevation | 0 - 15000 metres |
| Audible noise at 1 metre from surface of unit | 45.0 dBA |
| Protection Class | IP20 |
| Conformance | |
| Approvals | CE, EN/IEC 62040-1, EN/IEC 62040-2 |
| Standard warranty | 2 years repair or replace |
